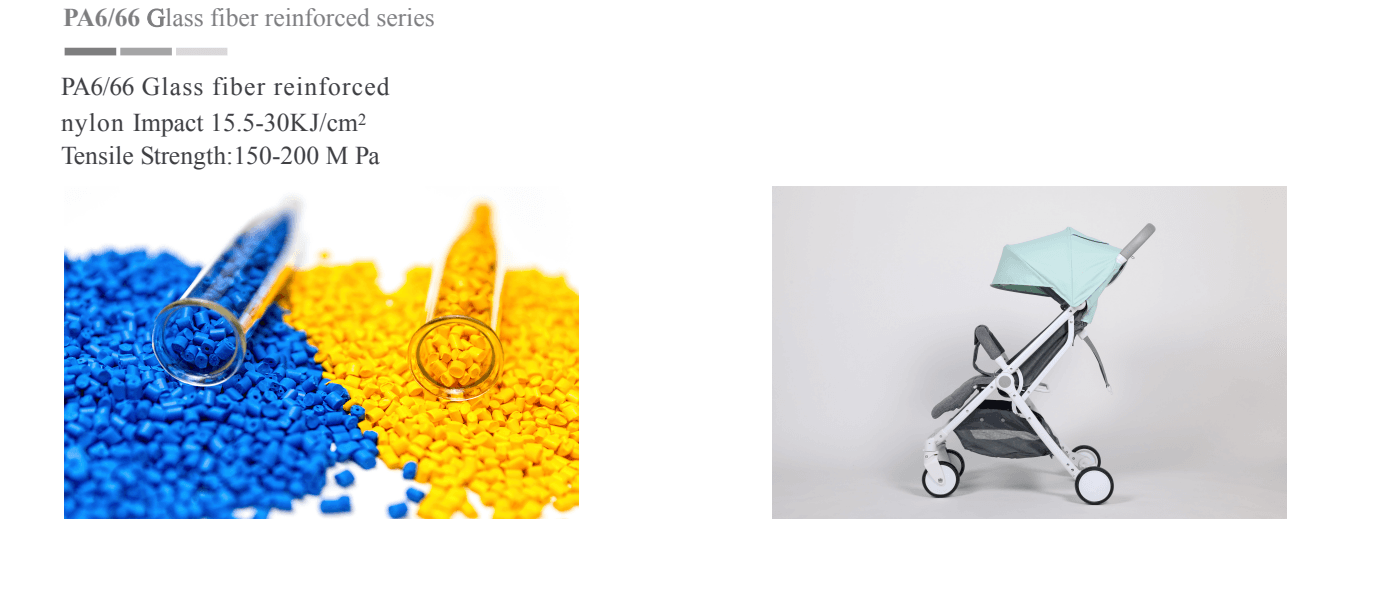

PA66 GF30
70G30L
High strength and dimensional stability
Automotive parts, industrial gears, brackets
InquirePA66 compounds
PA66 Compounds For Injection Molding
Priority grades include glass fiber reinforced, flame-retardant and halogen-free PA66 materials for electrical, automotive and industrial parts.
Priority Grade Catalog
PA66 GF33
70G33L
High tensile strength and heat resistance
Heavy-duty structures, transmission parts
InquirePA66 GF43
70G43HS1L
Very high rigidity and low warpage
Precision structures, high-temperature parts
Inquire

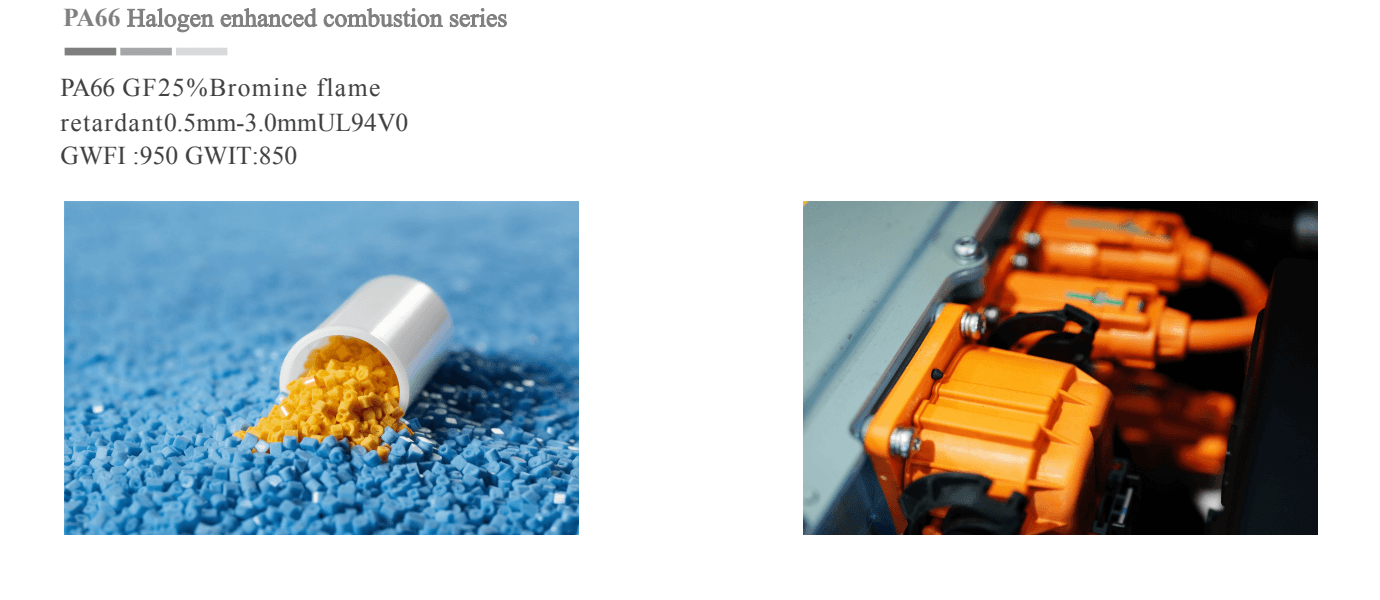

PA66 GF25 FR
FR50
UL94 V-0 performance grade, high rigidity
Connectors, coil bobbins, circuit breakers
InquirePA66 GF30 FR Black
FR52G30BL
Black flame-retardant grade with high strength
Automotive electronics, electrical housings, power parts
Inquire

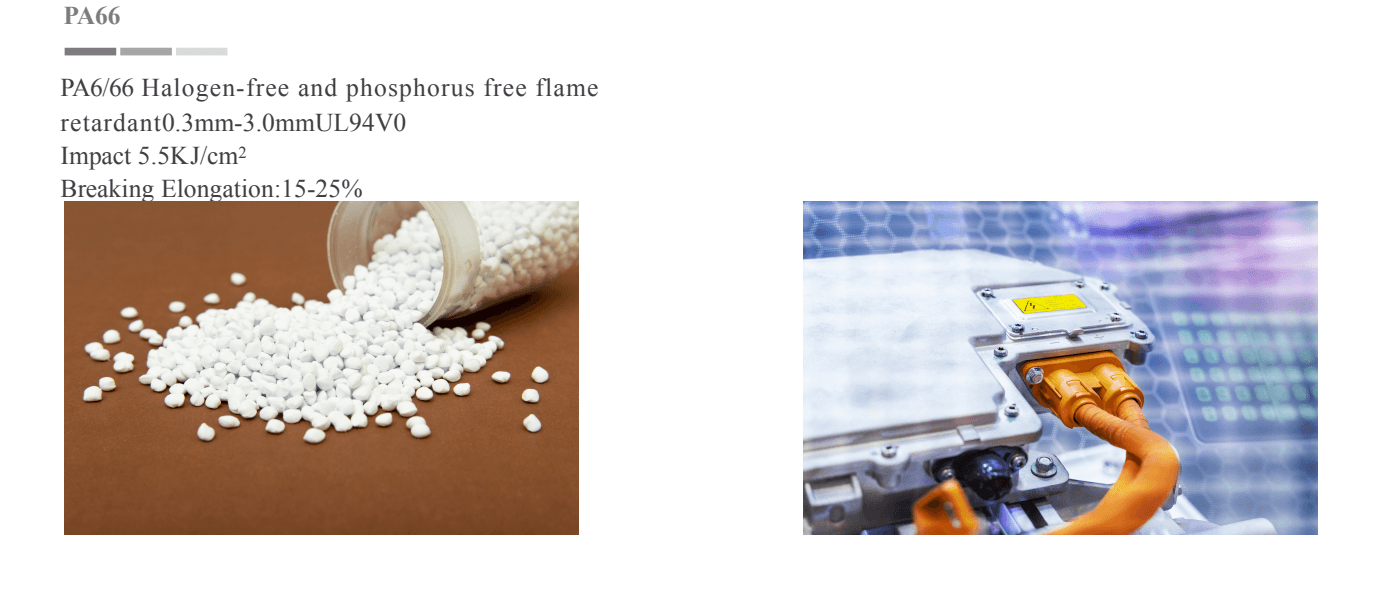

PA66 GF25 Halogen-free FR
FR7025V0F
Halogen-free, low-smoke and heat-stable
Industrial electrical safety parts
Inquire| Grade | Type | Key feature | Applications | Action |
|---|---|---|---|---|
| 70G30L | PA66 GF30 | High strength and dimensional stability | Automotive parts, industrial gears, brackets | Request TDS |
| 70G33L | PA66 GF33 | High tensile strength and heat resistance | Heavy-duty structures, transmission parts | Match My Grade |
| 70G43HS1L | PA66 GF43 | Very high rigidity and low warpage | Precision structures, high-temperature parts | Request Sample |
| FR50 | PA66 GF25 FR | UL94 V-0 performance grade, high rigidity | Connectors, coil bobbins, circuit breakers | Request TDS |
| FR52G30BL | PA66 GF30 FR Black | Black flame-retardant grade with high strength | Automotive electronics, electrical housings, power parts | Request Sample |
| FR7025V0F | PA66 GF25 Halogen-free FR | Halogen-free, low-smoke and heat-stable | Industrial electrical safety parts | Ask for Alternative |
Technical Data

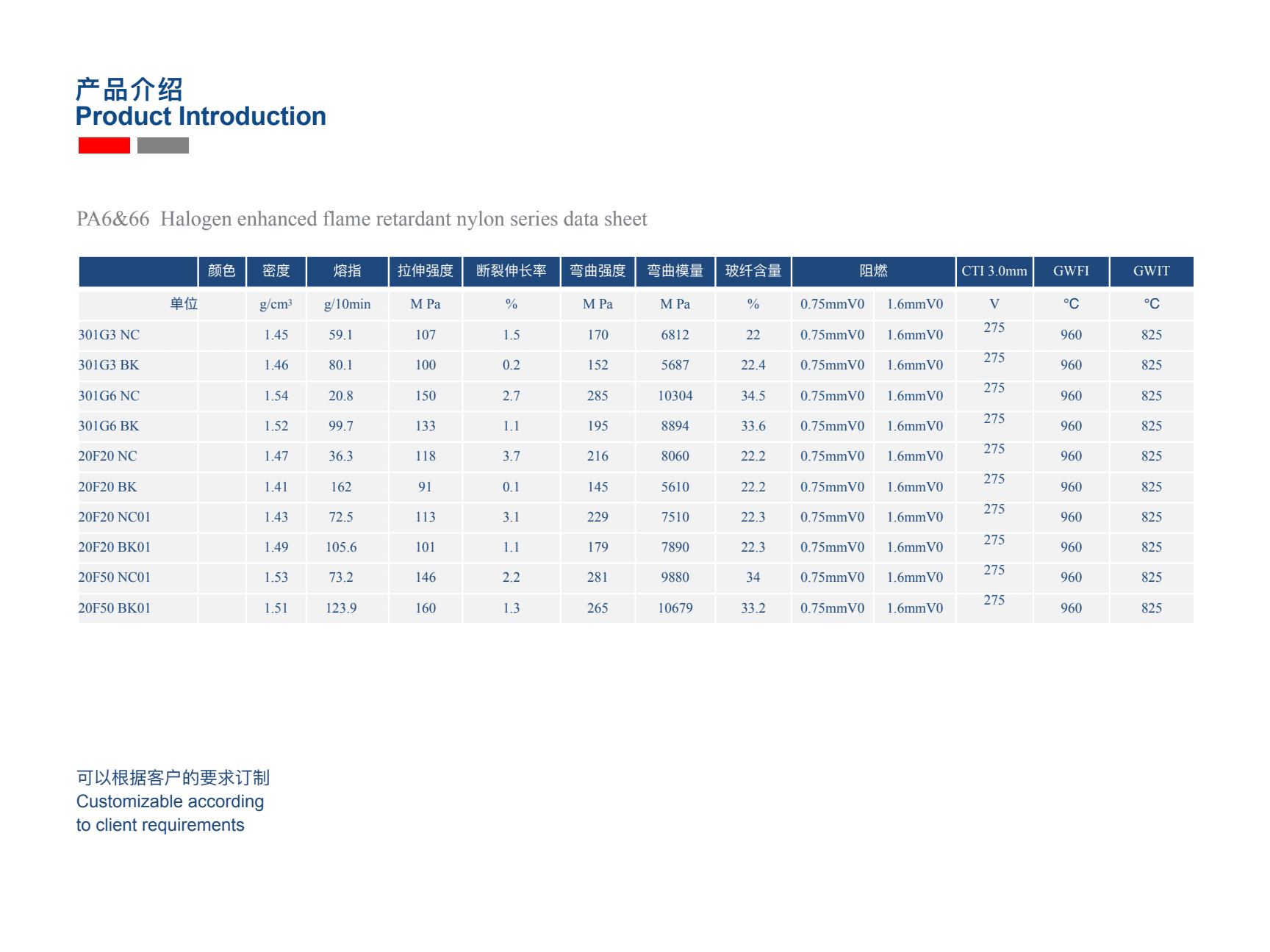

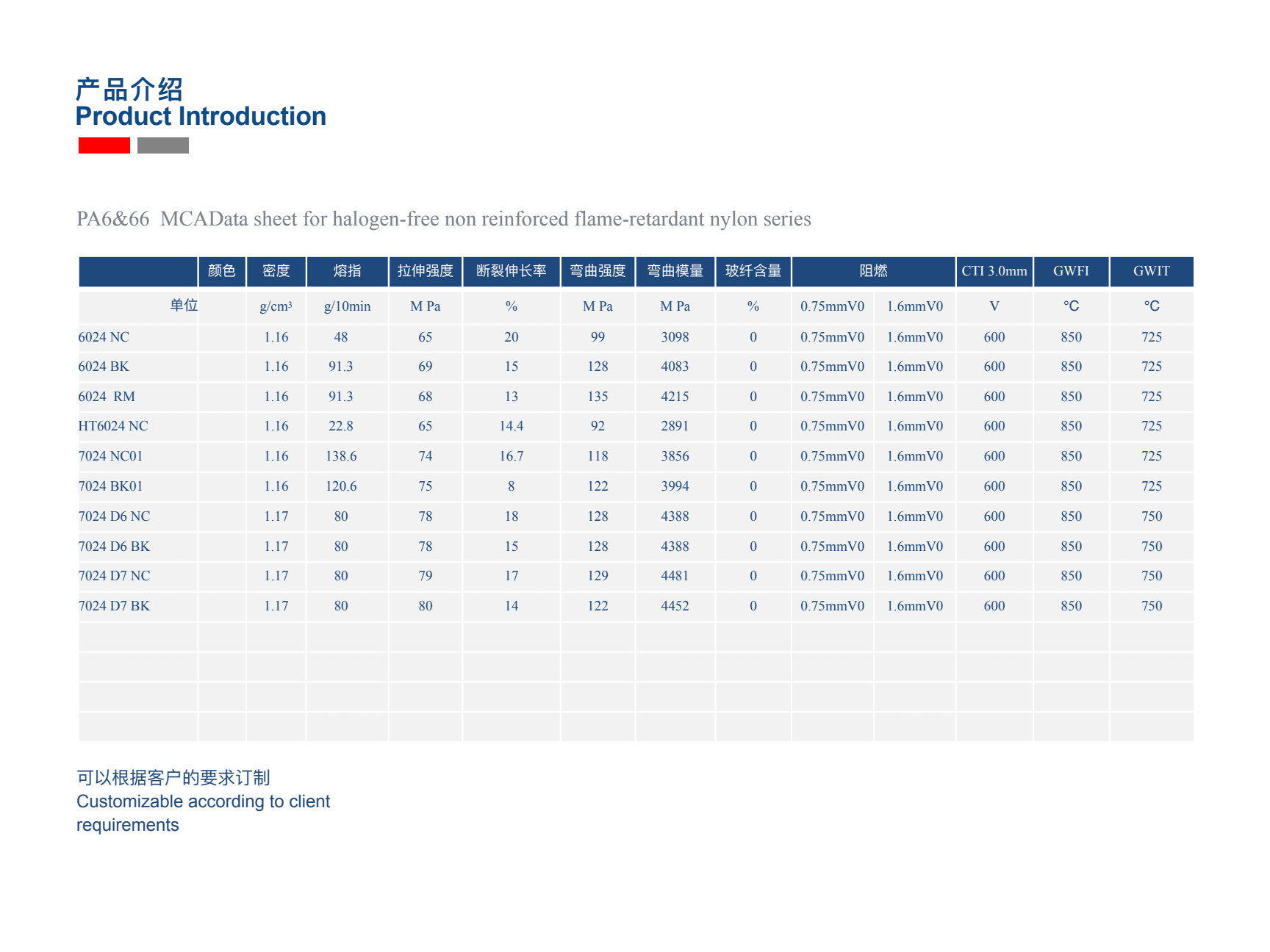

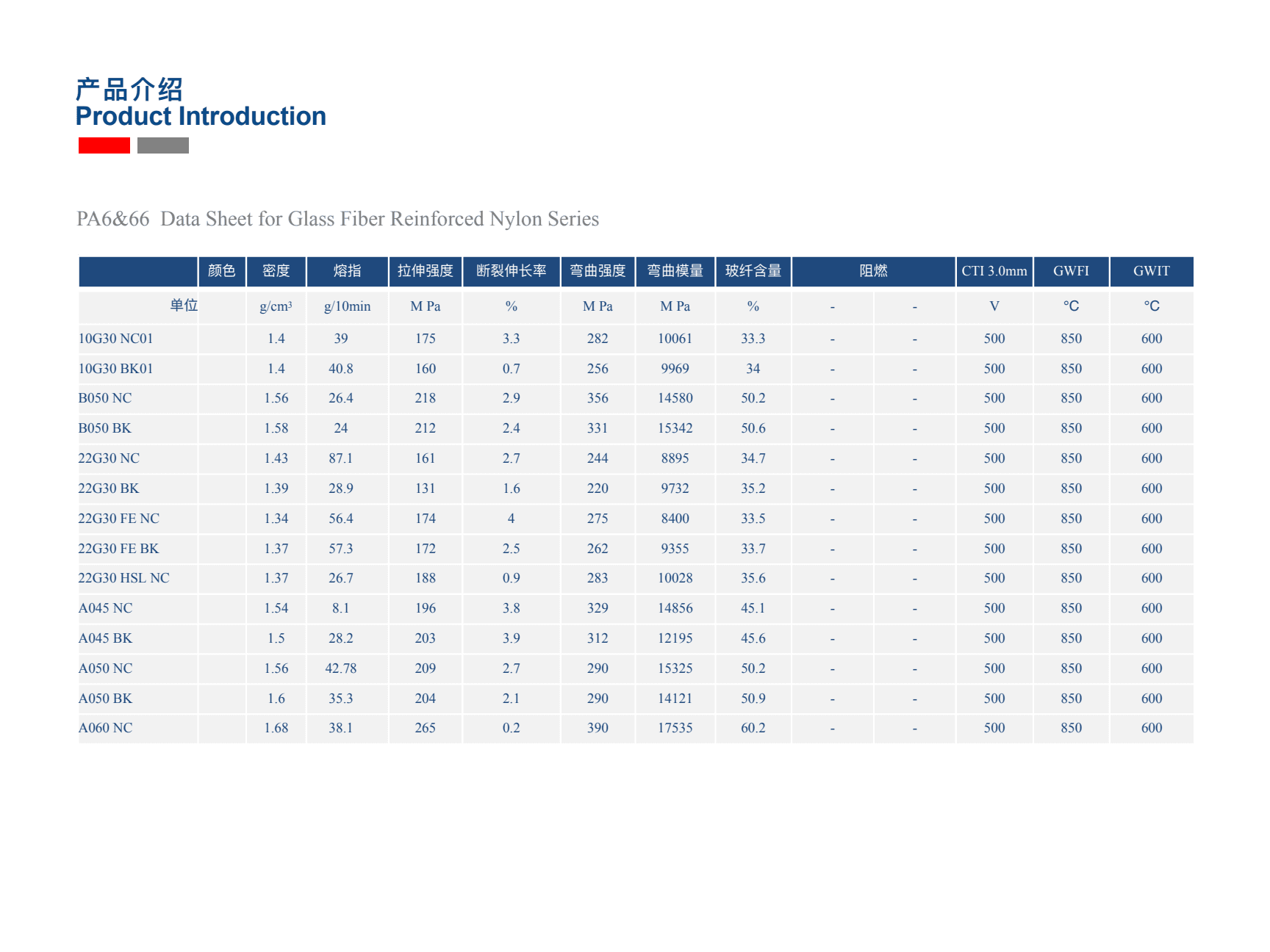

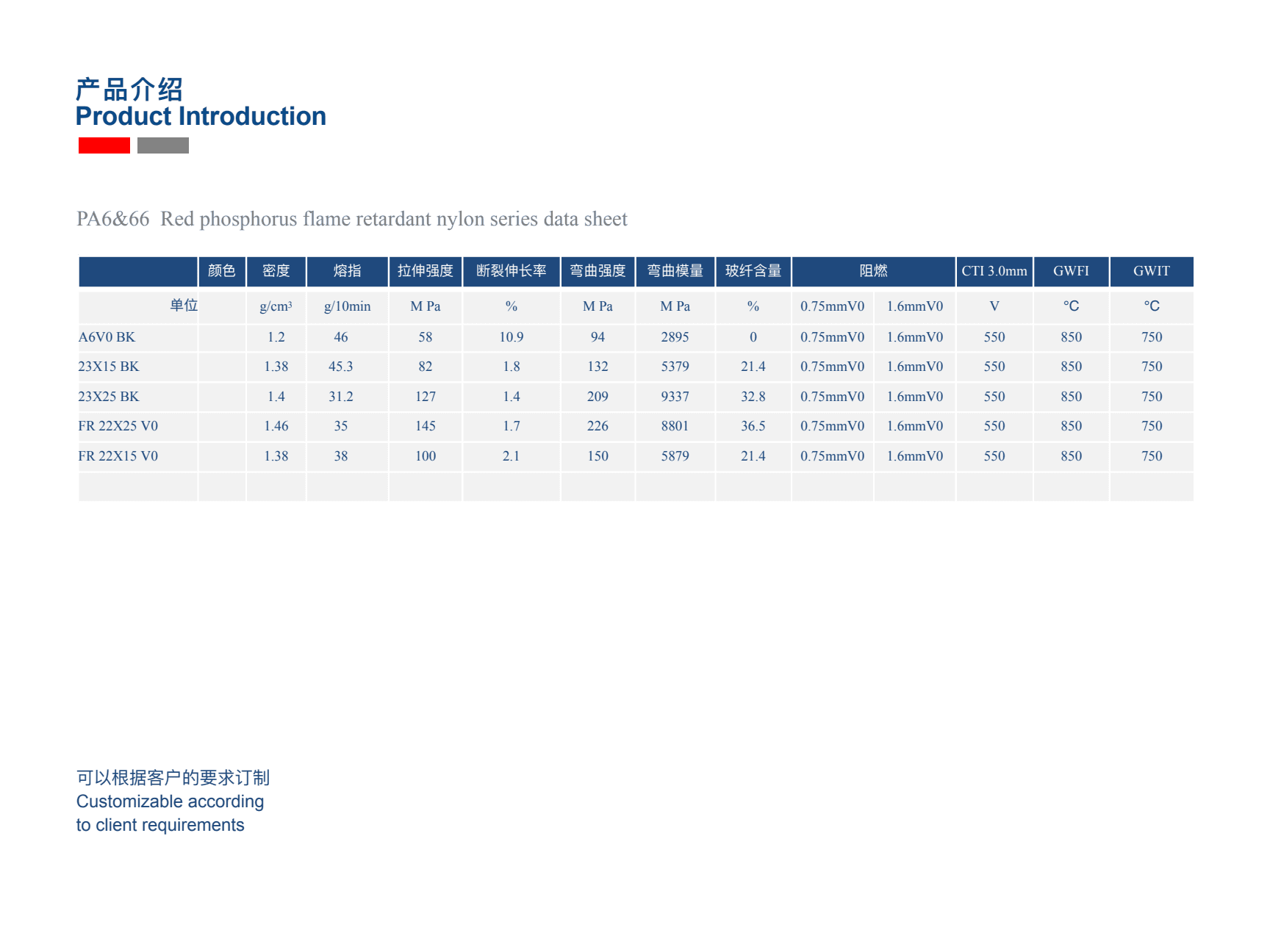

PA6/PA66 Technical Data Overview
Available data covers halogen enhanced flame-retardant nylon, glass fiber reinforced nylon, red phosphorus flame-retardant nylon and MCA halogen-free non-reinforced flame-retardant nylon.
Materials and selection
Review focused PA66 and PEEK material pages before sending your part requirements.
PA66 GF30 compounds for structural molded parts
Compare 70G30L, 70G33L and 70G43HS1L PA66 compounds for rigid structural parts, dimensional control and injection-molding trials.
PA66 flame-retardant compounds for UL94 V-0 requirements
Review FR50 and FR52G30BL for electrical injection-molded parts that require flame-retardant PA66 and documented UL94 performance.
Halogen-free flame-retardant PA66 for electrical parts
Evaluate FR7025V0F PA66 GF25 for electrical molded parts requiring a halogen-free flame-retardant material and documented validation.
Low-warpage PA66 for housings and stable dimensions
Select a current reinforced or mineral-filled PA66 match for housings and molded parts where flatness and dimensional stability matter.
PA66 grade selection and replacement guide
Compare reinforced, flame-retardant and halogen-free PA66 grades using the current material, part requirements and molding validation.
PA66 materials for connectors, breakers and coil bobbins
Review FR50, FR52G30BL and FR7025V0F for molded connectors, circuit breakers, coil bobbins and related electrical components.
PEEK material series for UAV component evaluation
Evaluate wear-resistant, ceramic-filled, carbon-fiber, high-modulus and glass-fiber PEEK series for specific UAV component requirements.
Engineering plastic sample testing and trial supply
Plan grade matching, sample testing and trial supply for PA66, PEEK and related engineering plastics before a production decision.
